Scissor Lift CAD Model

3D Model

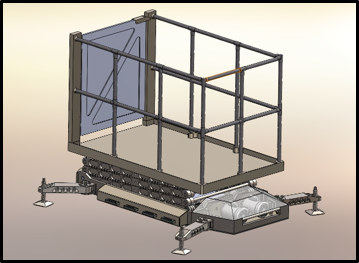

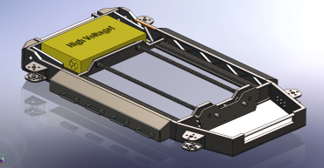

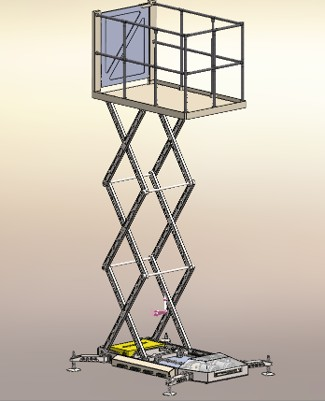

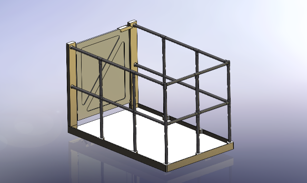

Scissor Lift - Extended View Scissor Lift - Top View Scissor Lift - Base View Scissor Lift - Side View Scissor Lift - Front View Scissor Lift - Front View Scissor Lift - Front View Scissor Lift - Front View

Key Design Features

General Design:

  • 2m x 1.2m Base
  • 0.5m to 3.7m Platform height (1.6ft to 12.2ft)
  • 750 kg Lift Capacity (1650 lbs)
  • 3-Stage Scissor Mechanism
  • Easy Portability (350 kg total weight, 770 lbs)

Safety:

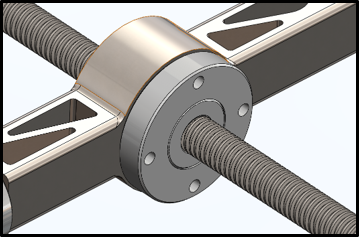

  • Non-backdrivable ACME Screw

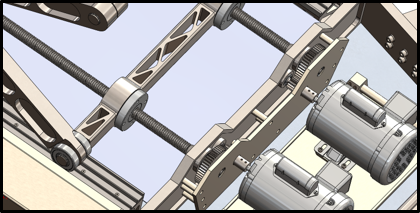

  • Dual Motor Propulsion
  • Kevlar Safety Harness
  • Speaker and LEDs sound during operation
Key Design Features
Propulsion and Materials

Propulsion & Materials

Propulsion:

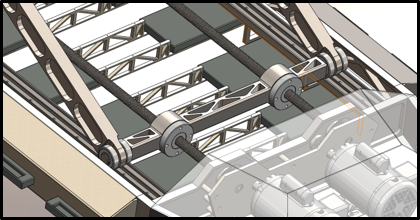

  • Electric Motor Driven Lead-Screw
  • ~45 seconds lift time
  • System rides on custom bearing tracks

Materials:

  • High Strength Titanium, Magnesium, Aluminum Alloys
  • Lightweight design features (isogrid pattern)
  • Steel & Tungsten Ballast Plates
  • 650 kg with Ballast (~1400 lbs)

Scissor Lift in Action
